Novatek-Electro RPM-416

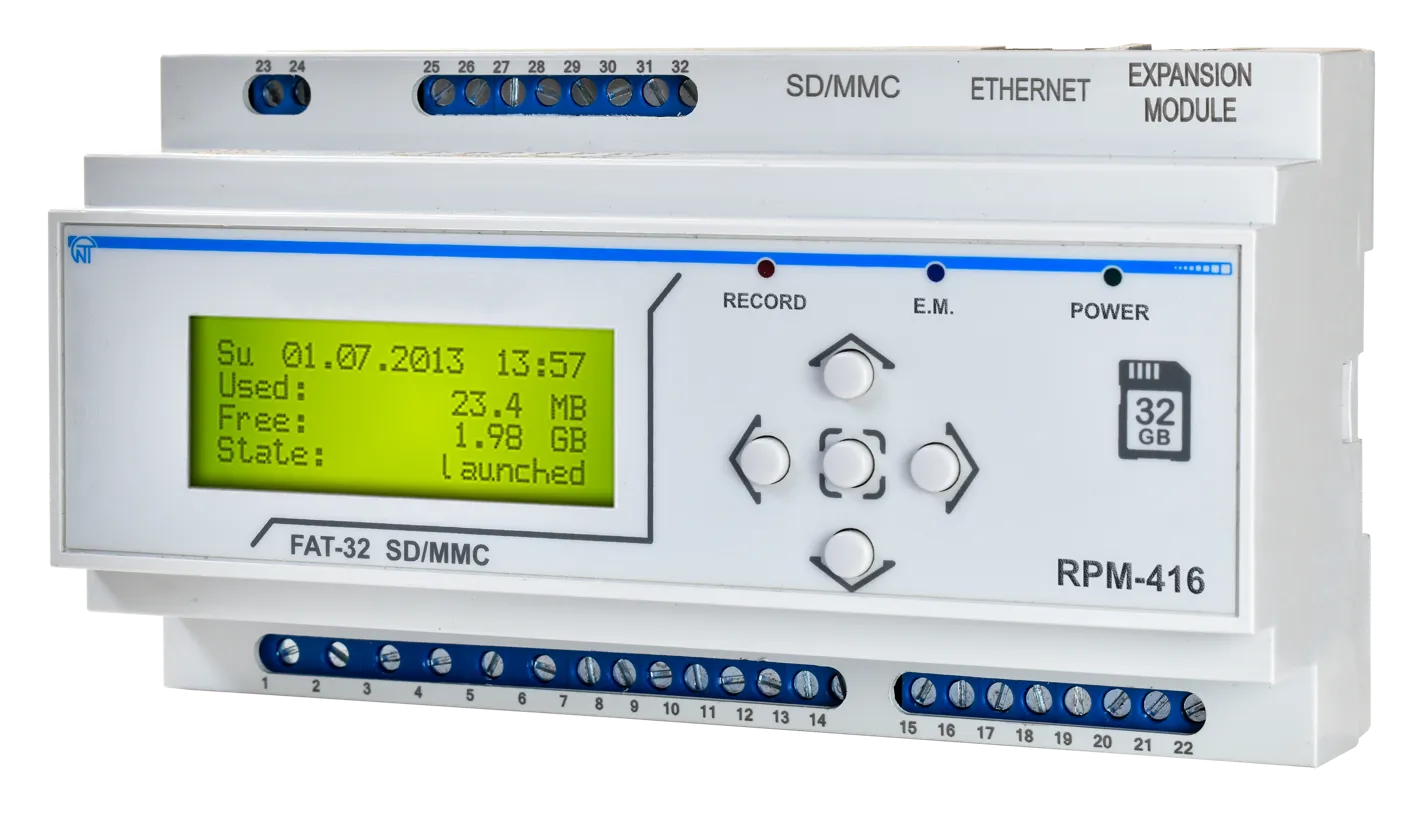

RPM-416 Microprocessor-Based Data Logger

The RPM-416 is a microprocessor-based data logger manufactured by NOVATEK-ELECTRO LTD. It is designed for electrical parameters measuring, monitoring, and data archiving with support for expansion modules and network connectivity.

Key Features

Section titled “Key Features”
  • Multi-channel measurement (voltage, current, temperature, analog, and digital inputs)
  • Data archiving to SD/SDHC memory card (up to 32 GB)
  • Recording period from 1 ms to 3600 s
  • Real-time clock with lithium battery backup
  • Ethernet connectivity (10Base-T/100Base-T)
  • Modbus TCP protocol support
  • Web-interface for remote configuration
  • FTP access to memory card
  • Support for up to 4 expansion modules
  • Overvis cloud integration (www.overvis.com)
  • 4-line LCD display with backlight
  • DIN-rail mounting (9 modules)

Input Channels

Section titled “Input Channels”
  • 3 voltage channels (3–450 V RMS)
  • 4 current channels via CT with 5A output (0.05–10.00 A)
  • 3 calculated power channels
  • 2 temperature channels (PTC1000/PT1000)
  • 1 analog voltage input (0–10 V)
  • 1 analog current input (0–20 mA)
  • 4 discrete inputs (dry contact)
  • Line voltage calculation (channels AB, BC, CA)

Common Use Cases

Section titled “Common Use Cases”
  • Electrical parameter monitoring and recording
  • Power quality analysis
  • Industrial process data logging
  • Energy monitoring and auditing
  • Environmental condition tracking

Documentation

Section titled “Documentation”
  • Operating Manual – Complete operating instructions, installation, and configuration
