Novatek-Electro EM-130

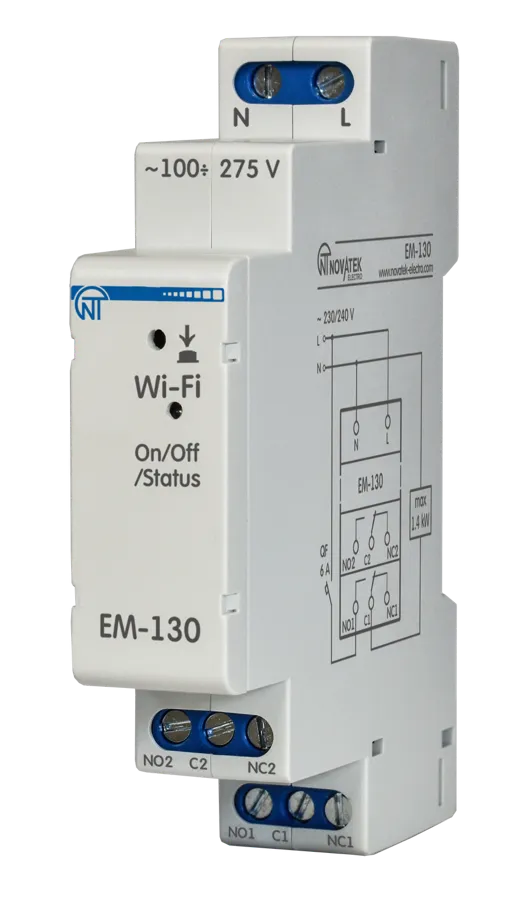

The Novatek-Electro EM-130 is a programmable astronomical timer with Wi-Fi connectivity, designed to automate lighting and other electrical loads based on sunrise/sunset times or custom schedules. It is ideal for street lighting, building facade illumination, parking lots, heating systems, pumps, fans, and scheduled operations like school bells.
Key Capabilities
Section titled “Key Capabilities”- Astronomical Control: Automatically calculates sunrise and sunset times based on GPS coordinates for location-aware load switching
- Flexible Scheduling: Up to 1024 programmable events with 1-minute accuracy across a weekly schedule
- Wi-Fi Connectivity: Built-in Wi-Fi with access point and client modes for easy configuration via web browser
- Web Interface: Intuitive browser-based configuration accessible from phones, tablets, and computers
- Remote Access: Connect via Modbus TCP protocol or Overvis cloud platform for remote monitoring and control
- Real-Time Clock: Built-in clock with 10+ days power reserve and NTP time synchronization
- Dual Switching Contacts: Two synchronously operating contact groups, each rated for up to 6 A
- Schedule Management: Save and load schedules to/from files for backup and multi-device deployment
- DIN Rail Mounting: Compact design (1 DIN module) for standard electrical panel installation
Common Use Cases
Section titled “Common Use Cases”- Street and outdoor lighting automation based on astronomical times
- Building facade and parking lot illumination control
- Energy-efficient heating device scheduling
- Pump and fan automation
- School bell scheduling systems
- Any time-based load switching application
Documentation
Section titled “Documentation”- Operating Manual – Complete safety information, technical specifications, installation procedures, and operating instructions
Technical Reference
Section titled “Technical Reference”- Appendix A: Modbus TCP Registers – Complete Modbus TCP register map for programmatic access and SCADA integration
Technical Highlights
Section titled “Technical Highlights”| Feature | Specification |
|---|---|
| Power Supply | 220-240 V AC, 45-65 Hz |
| Operating Voltage Range | 100-275 V |
| Maximum Load Current | 6 A per contact |
| Maximum Load Power | 1.44 kW (resistive) |
| Wi-Fi Standards | IEEE 802.11 b/g/n |
| Schedule Capacity | 1024 events |
| Protection Degree | IP20 |
| Operating Temperature | -30 to +55 °C |
| Mounting | 35 mm DIN rail |
Resources
Section titled “Resources”- EM-130 Product Page – Full product information and specifications
- One-Page Documentation – Complete documentation on a single page for printing
- EM-130 Full Manual (PDF) – Complete operating manual
